Refrigeration Tools: Series 130 Valve Block Tool

360-Degree Integration

Every unique problem calls for a unique solution. Please contact PCU today to see how we can create a custom designed solution specifically for your manufacturing facility.

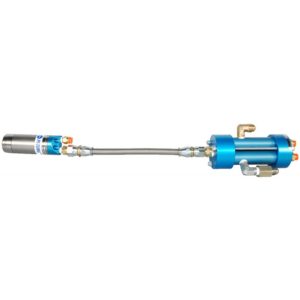

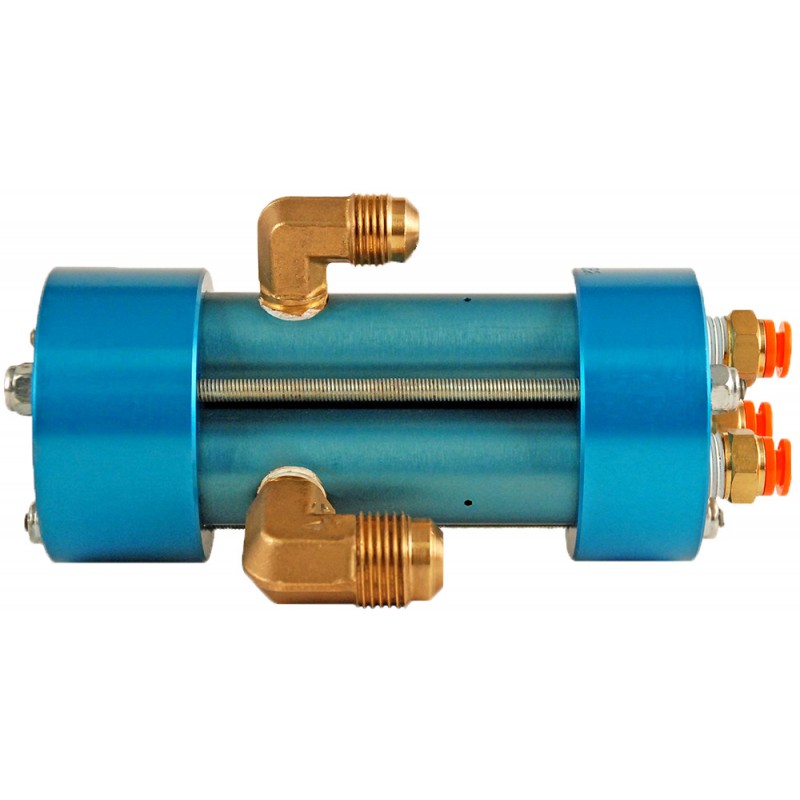

The 130 valve block tool is the interface adapter between a manual or automatic clamping mechanism and the fill system. The tool allows for minimum loss with automatic operation. The tool operates with flowmeter fill systems, and is air operated and lightweight. The tool contains three separate fluid circuits which can accommodate vacuum, refrigerant, salvage, oil, or other fluids.

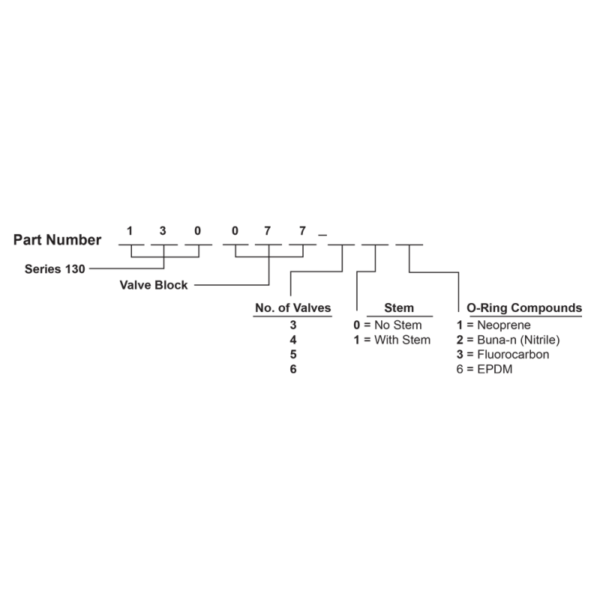

STANDARD STOCK P/N: 130077-302

Features

  • Universal Valve Block for various applications
  • Automatic Operation
  • Minimum Fluid Loss
  • High Vacuum, Refrigerant & Oil Flow Rates
  • Separate Fluid Connections
  • Easy Valve Body Maintenance
  • Economical
  • Repairable

Specifications

  • Factory Air Supply: 70 psig (4.9 kg/cm2)
  • Vacuum Port Fitting: 1/2" JIC flare
  • Fluid: 1/4" NPT Male
  • Oil Port Fitting: 3/8" SAE flare
  • Air Port Fitting: 1/4" Dia One Touch Connectors
  • Weight: 2 lbs (0.91 kg)
  • Vacuum Range: 0-760 TORR (0-760 mmHg)
  • Maximum Refrigerant Pressure:
    • 200 psig @70 psi air
    • 300 psig @ 80 psi air
    • 400 psig @ 90 psi air
    • 500 psig @ 100 psi air
  • Air Pilots: (Vacuum, Fluid, Oil)
  • Process Fitting Compatibility: 3/8" NPT
  • Tool Valve Block Flow Capacity: 1.3 Cv (typical)

PATENTS: Patent Pending
