Refrigerant Tools: Series 13000-003 Refrigerant Evacuation & Charging Tool

Share on facebook
Share on google
Share on twitter
Share on linkedin

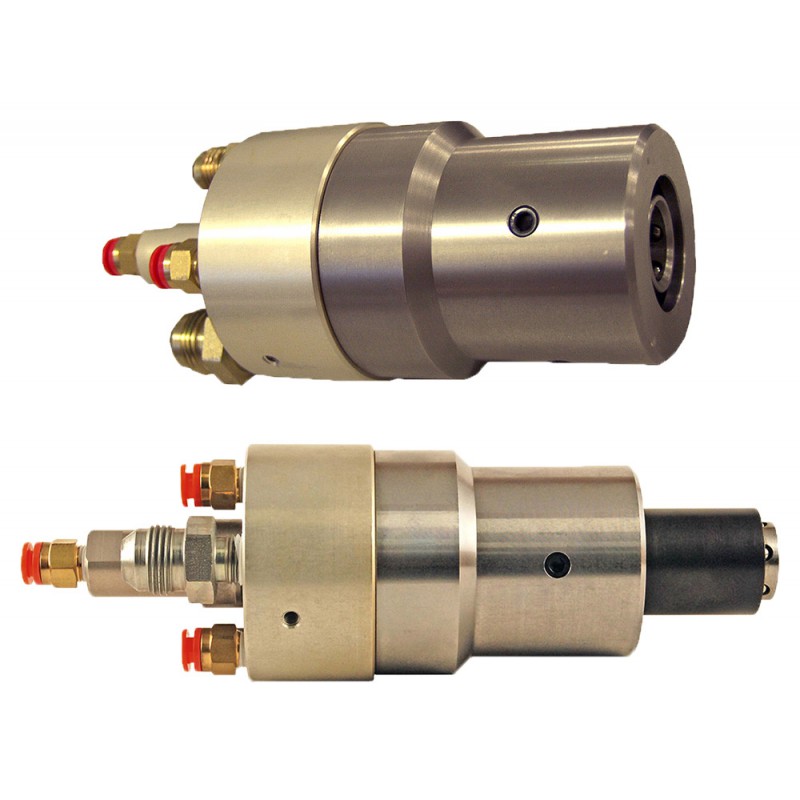

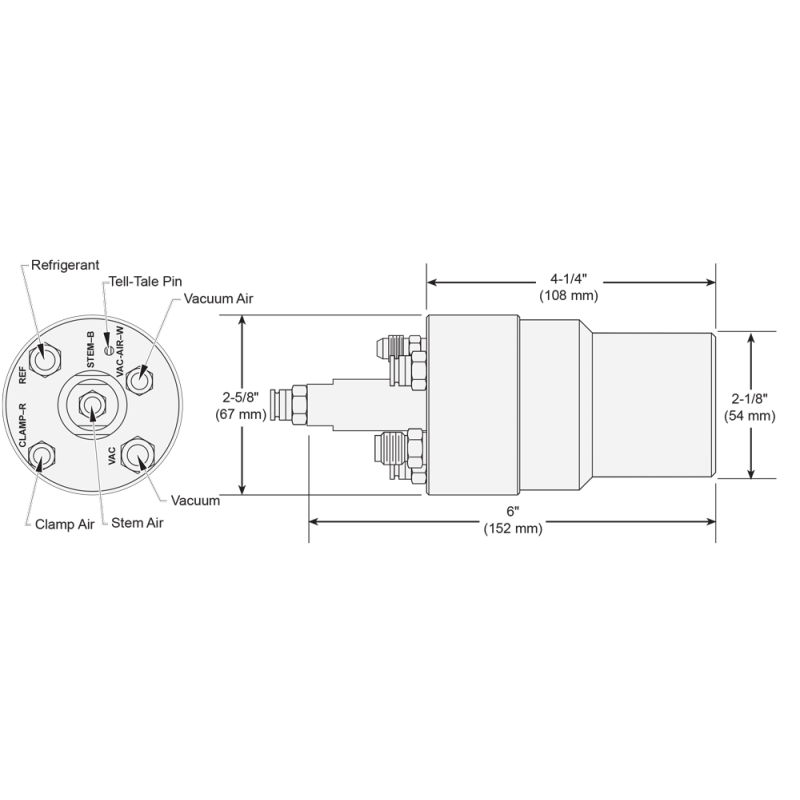

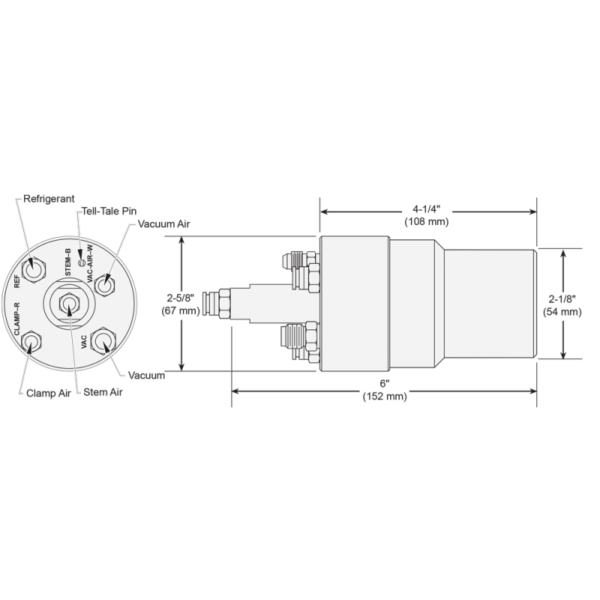

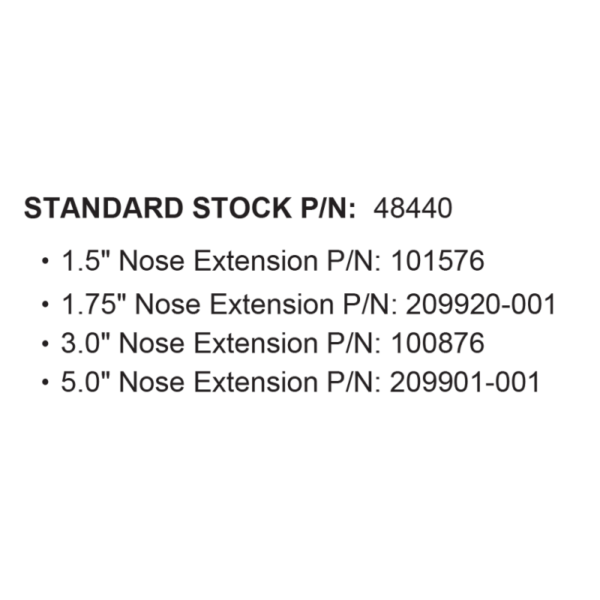

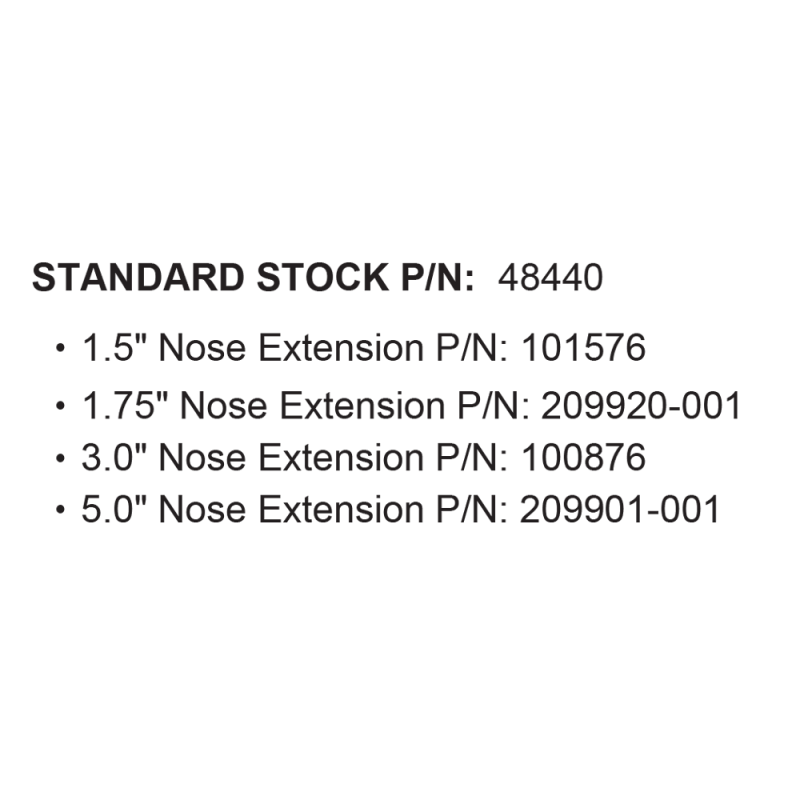

The 13000-003 charging tool is the interface adapter for a refrigerant charging system. It connects to the High-Side SAE J639 process fitting for refrigerant charging. The tool allows for minimum refrigerant loss with automatic operation upon connection to the fitting. The tool is used with positive displacement charging systems. It is air operated and light weight. Comes standard or with an extended nose.

Features

  • Minimum Refrigerant Loss
  • Zero Connection Force with Clamp
  • Automatic Disconnect Capability
  • High Vacuum Flow Rates
  • Economical
  • Repairable

Specifications

  • Factory Air Supply: 80 psig (5.6 kg/cm2)
  • Vacuum Port Fitting: 1/2″ JIC flare
  • Refrigerant: 3/8″ JIC flare
  • Air Port Fitting: 1/4″ Dia One Touch Connectors
  • Weight: 3.1 lbs (1.4 kg)
  • Vacuum Range: 0-760 TORR (0-760 mmHg)
  • Refrigerant: HFC-134a (at 600 psig max. (42 kg/cm2) relieves at 350 psig (25 kg/cm2))
  • Oil Compatibility: Polyolester or PAG
  • Vacuum Flow: 2.5 SCFM
  • Tool Flow Rate: 225 g/sec (typical value based on external drive force of 750 psi)
  • Air Pilots: (Vacuum, Clamp, Stem Air)
  • Process Fitting Compatibility: SAE J639
  • Process Fitting Nose Seal: Molded
  • Process Fitting Clamp System: PCU BalLoc

PATENTS: This tool is manufactured under U.S. Patent No. 4,805,417

TOOLING CATEGORY

Fill Tools

Media

Refrigerants
