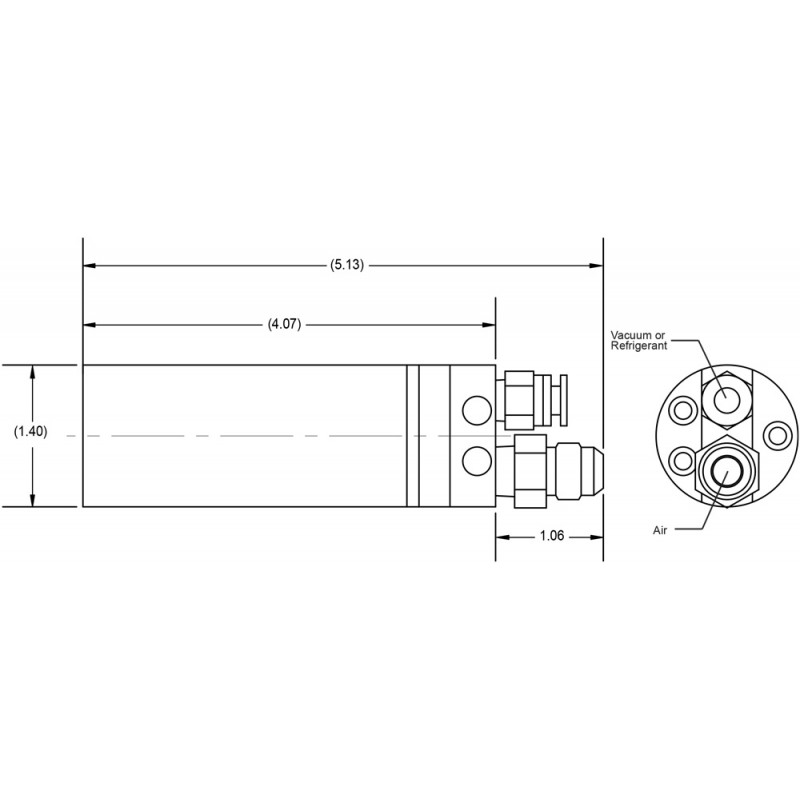

R134a Series 109 Model 86 Power Coupler

360-Degree Integration

Every unique problem calls for a unique solution. Please contact PCU today to see how we can create a custom designed solution specifically for your manufacturing facility.

Provides for instant positive connecting onto the R134a low side process fitting for evacuation or refrigerant charging with automatic disconnect at cycle completion. Holding pressure from vacuum to 600 psig.

Applications

  • Vacuum
  • Refrigerants
  • Oil
  • Low Side Fitting

Features

  • PLC Controllable
  • Automatic Operation
  • Leak Free Positive Lock
  • Quick Connect/Disconnect
  • Long Lasting
  • Economical

Specifications

  • Characteristic:: For R134a Low Side Fitting
  • Coupler Style: Power Charging Coupler
  • Stem Extension: 7.8 to 8.3 mm (SAE J639 Standard)
  • Air pilots: Clamp Air
  • Factory Air Supply: 60 psig/4.2 kg/cm²
  • Air Port Fitting: 1/4" Dia. One Touch Connectors
  • Weight: 1.15 lb/0.5 kg
  • Vacuum Indicating Range: ATM - 10 microns Torr
  • Vacuum flow: 2.8 SCFM
  • Fluid & Vacuum Port Fitting: 3/8" SAE FL
  • Refrigerant: HFC-134a at 600 PSIG max. (42 kg/cm2)
  • Process fitting nose seal: Molded
  • Process fitting clamp system: PCU BalLoc
  • Oil compatibility: Polyolester or PAG
  • Flow Rate: 0.41 Cv
  • Standard Stock: P/N 109006-001
