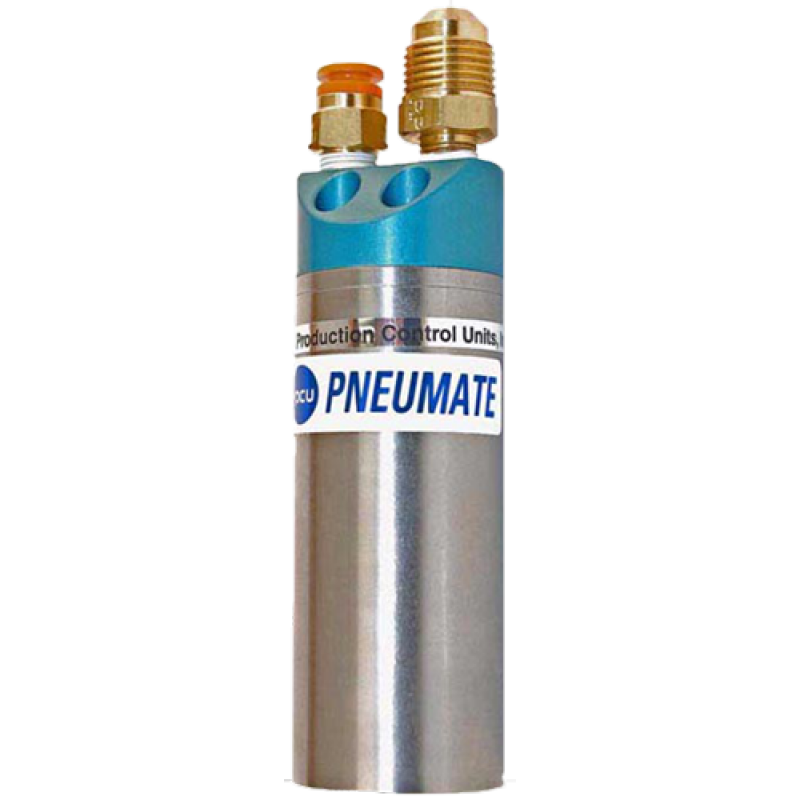

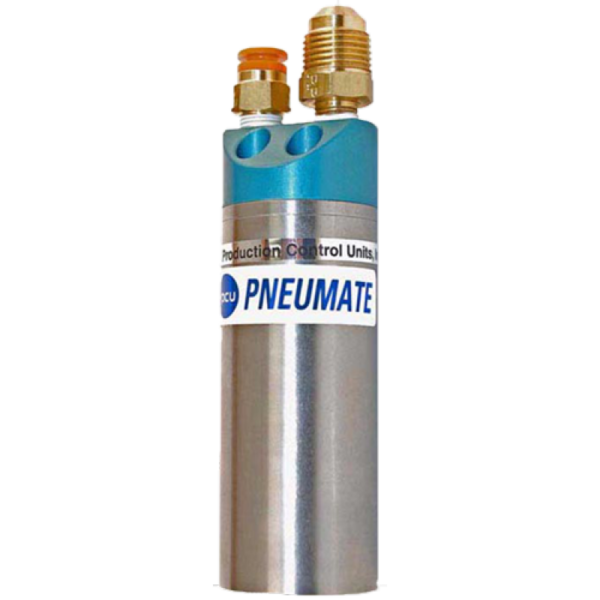

R134a Series 101 Model 87 Power Coupler

360-Degree Integration

Every unique problem calls for a unique solution. Please contact PCU today to see how we can create a custom designed solution specifically for your manufacturing facility.

Series 101 Model 87 Power Coupler is designed for easy installation on to the HFC-134a high-side process fittings. For evacuation or refrigerant charging with automatic disconnect at cycle completion. Holding pressure from vacuum to 600 psig.

Applications

  • Vacuum
  • Refrigerant
  • Oil
  • High Side Fitting

Features

  • PLC Controllable
  • Automatic Operation
  • Leak Free Positive Lock
  • Quick Connect/Disconnect
  • Long Lasting
  • Economical

Specifications

  • Characteristic: For R134a High Side Fitting
  • Coupler Style: Power Charging Coupler
  • Stem Extension: 7.8 to 8.3 mm (SAE J639 Standard)
  • Air Pilots: Clamp Air
  • Factory Air Supply: 60 psig/4.2 kg/cm2
  • Air Port Fitting: 1/4" Dia. One Touch Connectors
  • Weight: 1.15 lb/0.5 kg
  • Vacuum Indication Range: ATM - 10 microns Torr
  • Vacuum Flow: 2.8 SCFM
  • Fluid & Vacuum Port Fitting: 3/8" SAE FL
  • Refrigerant: HFC-134a at 600 psig max. (42 kg/cm2)
  • Process Fitting Nose Seal: Molded
  • Process Fitting Clamp System: PCU BalLoc
  • Oil Compatibility: Polyolester or PAG
  • Flow Rate: 0.41 Cv
  • Standard Stock: P/N 102750-001
