Series 250 Evacuate & Charge Coupler

360-Degree Integration

Every unique problem calls for a unique solution. Please contact PCU today to see how we can create a custom designed solution specifically for your manufacturing facility.

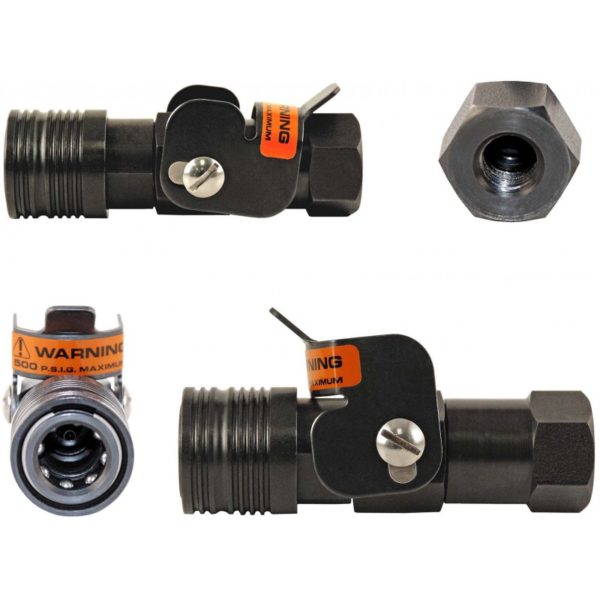

The Evacuate & Charge Coupler is designed for independent stem operation. The Operator manually clamps onto a PCU 250 Process Fitting then rotates the lever up/forward to open the fitting. When the lever is up/forward, this action locks the coupler onto the Process Fitting preventing the release of the coupler during the process. When this process is complete, the operator closes the flow passage & shutoff valve by rotating the lever into a down position. The coupler may then be removed from the Process Nipple. PCU, Inc will custom design couplers for your application.

Applications

  • Vacuum/Air
  • Helium
  • Nitrogen

Specifications

  • Weight: 12.25oz
  • Pressure: 25 Microns to 500 psig
  • STD Proccess Fitting: PCU 250 Nipple
  • Flow Rate: 0.43Cv
  • Nose Seal: OR113 O-Ring
  • Process Fitting Clamp Assy: PCU BalLoc
  • End Cap Thread: 1/4 NPT Female

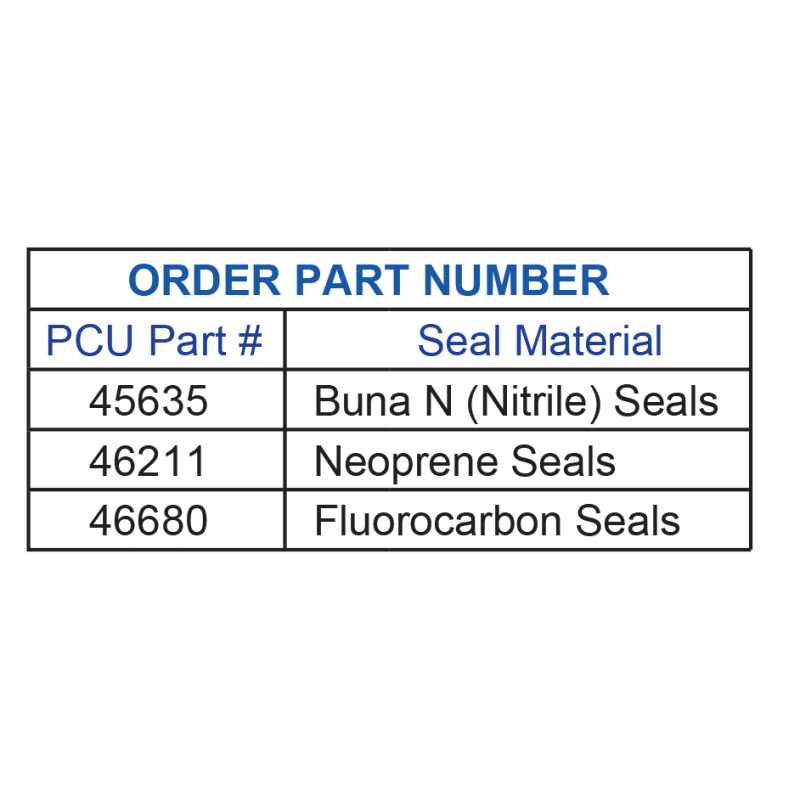

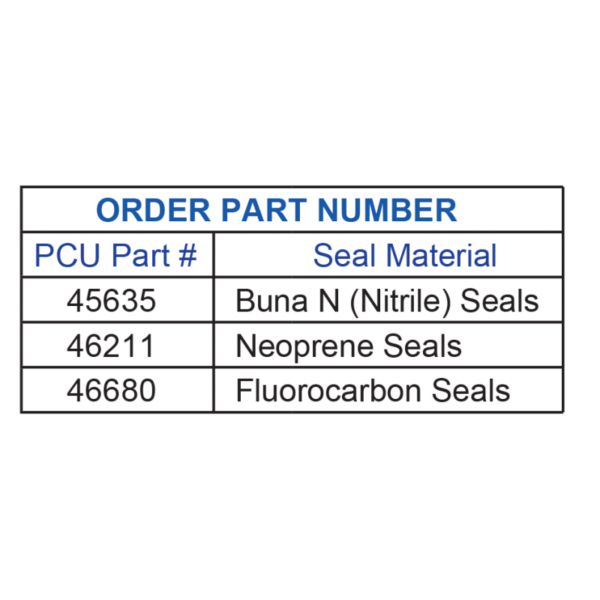

  • Standard Stock Coupler: P/N 46211
